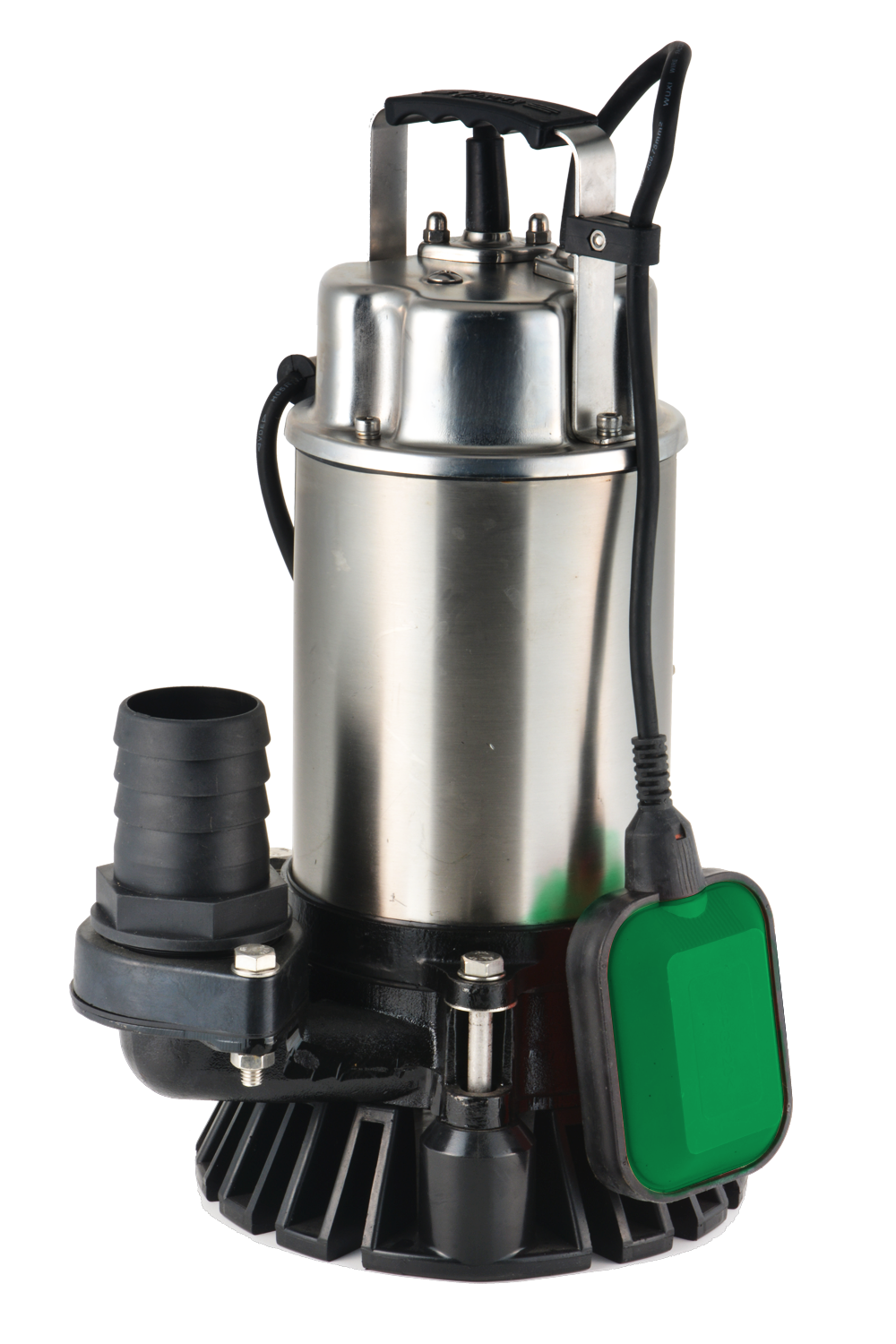

SDB Series – Heavy Duty Submersible Dewatering Pumps 240V
Aquaplus SDB 240V pumps are small robust dewatering pumps ideal for professional use in applications such as construction sites and site drainage. SDB pumps are designed for continuous unattended operation. Manual and automatic (with float) versions are available.
![SDB Series – Heavy Duty Submersible Dewatering Pumps 240V](/wp-content/uploads/2018/02/Aquaplus-SDB-Series.png)
- Features
- Applications

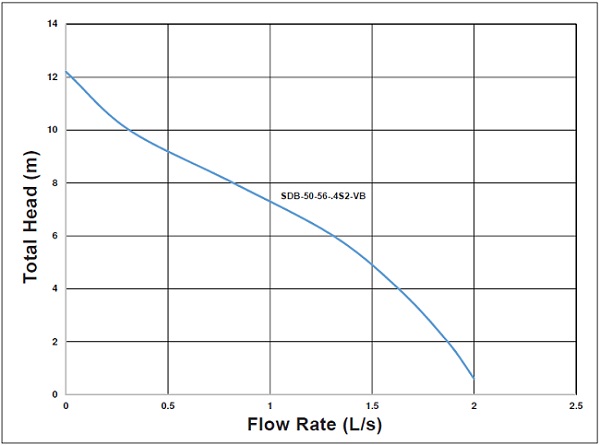

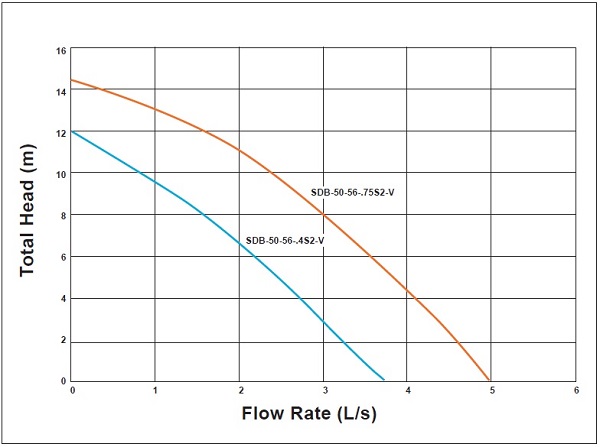

- Curves
- Tech Specs
- Dimensions
- Downloads
- Single phase 240V pump
- Small robust pump
- Abrasion resistant pump casing
- Automatic motor protection
- Double mechanical seal in oil bath
- Stainless steel frame
- Agitator
- Bottomer version available, pumps down to 2mm
- Construction site dewatering
- Cellar or basement drainage
- Storm water drainage
- Decorative water features and fountains
- Tank, swimming pool, pond pump out
Model Number | Discharge (mm) | Power (kW) | Voltage (V) | Cable (m) | Max Flow (L/s) | Shut-off head (m) | Pump Weight (kg) | Max Solid (mm) | Rated Current A (240V) |
Manual | |||||||||
SDB-50-56-.4S2-10MP-V | 50 | 0.4 | 240 | 10 | 3.6 | 12 | 12 | 7 | 2.6 |
SDB-50-56-.75S2-10MP-V | 50/80 | 0.75 | 240 | 10 | 5 | 14 | 14 | 7 | 4.6 |
SDB-50-56-.4S2-10MP-VB | 50 | 0.4 | 240 | 10 | 2 | 12 | 12 | 3 | 2.6 |
Automatic | |||||||||
SDB-50-56-.4S2-10AP-V | 50 | 0.4 | 240 | 10 | 3.6 | 12 | 12 | 7 | 2.6 |
SDB-50-56-.75S2-10AP-V | 50/80 | 0.75 | 240 | 10 | 5 | 14 | 14 | 7 | 4.6 |

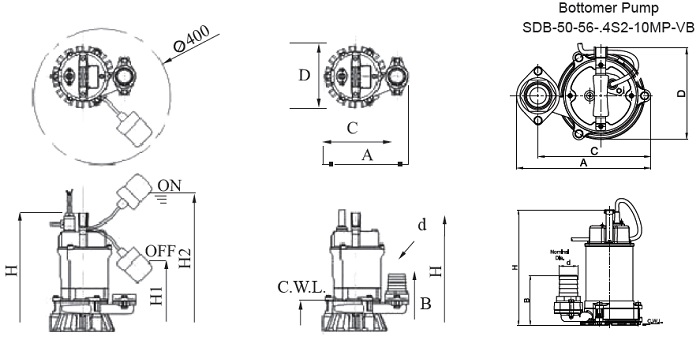

Model | Dimensions (mm) | ||||||||
D | h | A | B | C | h1 | h2 | d | C.W.L | |
Manual | |||||||||
SDB-50-56-.4S2-10MP-V | 185 | 400 | 241 | 170 | 207 | n/a | n/a | 50 | 90 |
SDB-50-56-.75S2-10MP-V | 184 | 410 | 285 | 217 | 233 | n/a | n/a | 80 | 90 |
SDB-50-56-.4S2-10MP-VB | 182 | 317 | 245 | 137 | 205.5 | n/a | n/a | n/a | 5 |
Automatic | |||||||||
SDB-50-56-.4S2-10AP-V | 185 | 400 | 241 | 170 | 207 | 170 | 400 | 50 | 90 |
SDB-50-56-.75S2-10AP-V | 184 | 410 | 285 | 217 | 233 | 170 | 400 | 80 | 90 |
