MD Series – Magnetic Drive Pumps

Aquaplus MD Series Magnetic Drive pumps feature a seal-less design, with power transmission taking place through the magnetic fields generated by permanent magnets fixed to the impeller and motor shaft ensuring zero leakage pumping.

MD Series – Magnetic Drive Pumps
  • Features
  • Applications
  • Curves
  • Tech Specs
  • Downloads

MP Range

  • Zero leakage of pumped fluids
  • Highly chemical resistant
  • Easy to maintain
  • Large range of models
  • Option of material types
  • Long term reliability



  • Chemical & petrochemical
  • Photographic & x-ray processing
  • Medical
  • Galvanising
  • Electroplating
  • Anodising
  • Etching
  • Fertiliser plants
  • Water treatment
  • Food & beverage
  • Refrigeration
  • Aquaculture

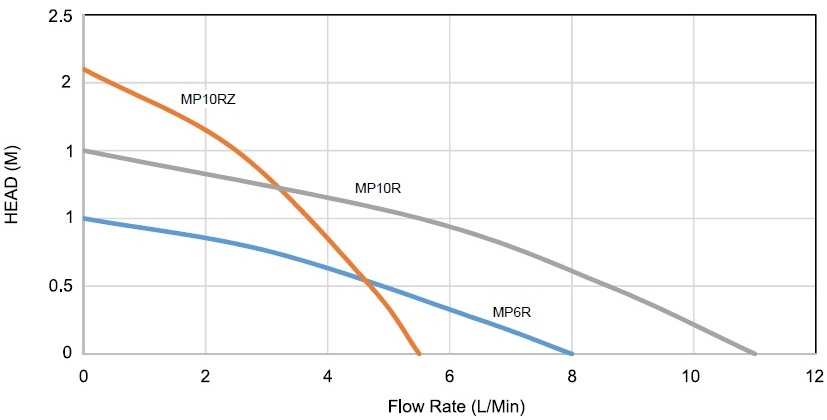

MP6-10

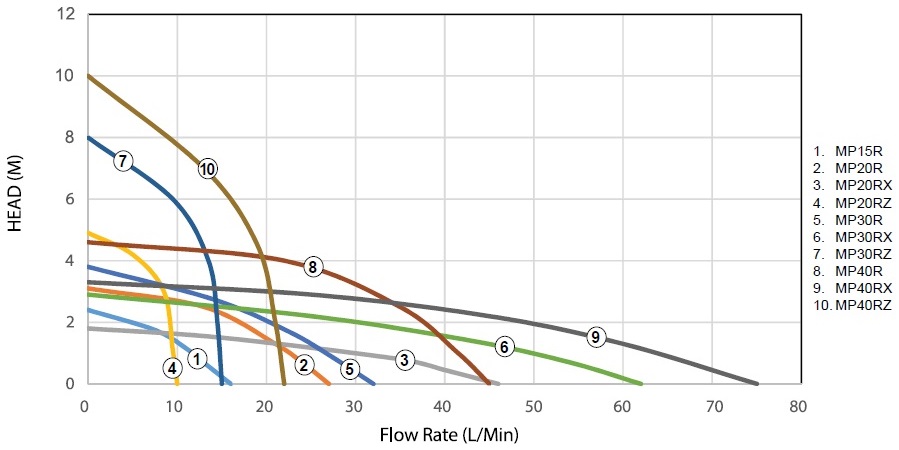

MP15-40

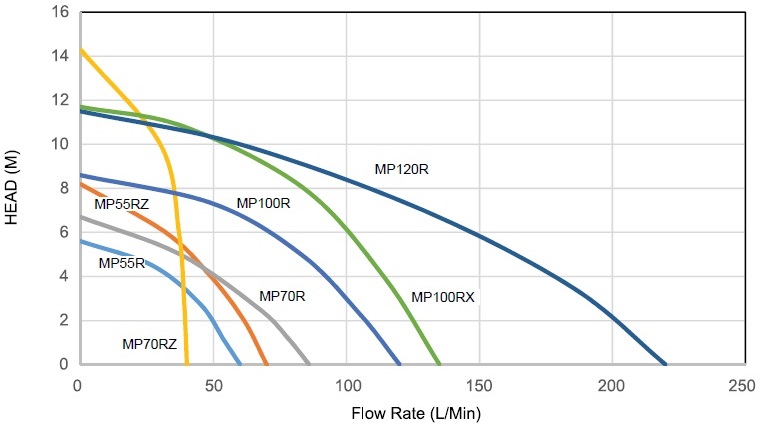

MP55-120

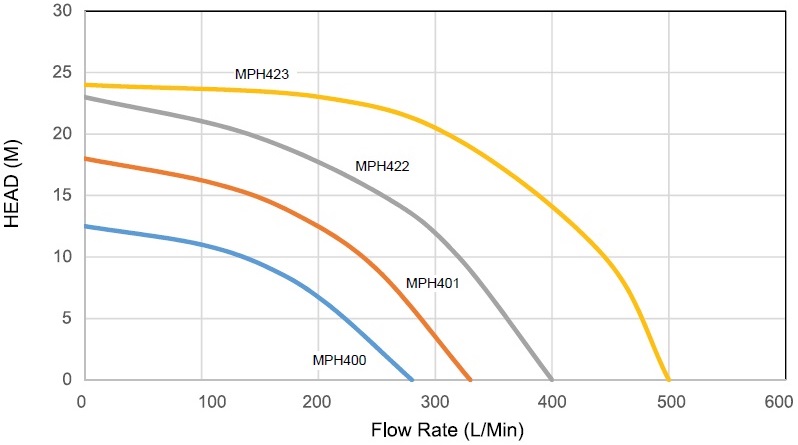

MP400-423

Part Number Material Type* Hose Connection
Ports (mm)		 Threaded Connection
Ports (BSP-m)		 Max. Capacity
(l/min) 50Hz/60Hz		 Max. Head
(M) 50Hz/60Hz		 Specific Gravity
Max. (kg/m³)		 Output
(Watt)		 Phase Weight
(kg)
MAGMP6R PP+GF/FPM 14 14 – 8/9 1/1.4 <1.2 6 1 0.9
MAGMP6RZ PP+GF/FPM 14 14 – 5.5/6 2.1/2.7 <1.1 6 1 0.9
MAGMP10R PP+GF/FPM 14 14 – 11/12 1.5/2.1 <1.1 6 1 0.9
MAGMP15R PP+GF/FPM 16 16 – 16/19 2.7/3.4 <1.1 10 1 1.6
MAGMP15RM PP+GF/FPM – – 3/4 16/19 2.7/3.4 <1.3 10 1 1.6
MAGMP20R PP+GF/FPM 18 18 – 27/32 3.4/4.3 <1.3 15 1 2
MAGMP20RM PP+GF/FPM – – 3/4 27/32 3.4/4.3 <1.3 15 1 2
MAGMP20RX PP+GF/FPM 26 26 – 46/52 1.8/2.5 <1.3 15 1 2
MAGMP20RXM PP+GF/FPM – – 1 46/52 1.8/2.5 <1.3 15 1 2
MAGMP20RZ PP+GF/FPM 18 18 – 10/11 4.6/6.9 <1.3 15 1 2
MAGMP20RZM PP+GF/FPM – – 3/4 10/11 4.6/6.9 <1.3 15 1 2
MAGMP30R PP+GF/FPM 20 20 – 33/38 3.8/5.4 <1.1 25 1 3.5
MAGMP30RM PP+GF/FPM – – 3/4 33/38 3.8/5.4 <1.1 25 1 3.5
MAGMP30RX PP+GF/FPM 26 26 – 62/72 2.9/4.1 <1.3 25 1 3.5
MAGMP30RXM PP+GF/FPM – – 1 62/72 2.9/4.1 <1.3 25 1 3.5
MAGMP30RZ PP+GF/FPM 18 18 – 15/17 8/11 <1.1 25 1 3.5
MAGMP30RZM PP+GF/FPM – – 3/4 15/17 8/11 <1.1 25 1 3.5
MAGMP40R PP+GF/FPM 20 20 – 45/52 4.6/6.5 <1.1 65 1 3.9
MAGMP40RM PP+GF/FPM – – 3/4 45/52 4.6/6.5 <1.1 65 1 3.9
MAGMP40RZ PP+GF/FPM 20 20 – 22/22 10/13.5 <1.1 65 1 3.9
MAGMP40RZM PP+GF/FPM – – 3/4 22/22 10/13.5 <1.1 65 1 3.9
MAGMP40RX PP+GF/FPM 26 26 – 75/85 3.3/4.7 <1.1 65 1 3.9
MAGMP40RXM PP+GF/FPM – – 1 75/85 3.3/4.7 <1.1 65 1 3.9
MAGMP55R PP+GF/FPM 26 26 – 60/70 5.6/8.2 <1.2 90 1 or 3 5.4
MAGMP55RM PP+GF/FPM – – 1 60/70 5.6/8.2 <1.2 90 1 or 3 5.4
MAGMP55RZ PP+GF/FPM 26 26 – 25/28 10/14 <1.1 90 1 or 3 5.4
MAGMP55RZM PP+GF/FPM – – 1 25/28 10/14 <1.1 90 1 or 3 5.4
MAGMP70R PP+GF/FPM 26 26 – 86/97 6.7/9.7 <1.1 150 1 or 3 6
MAGMP70RM PP+GF/FPM – – 1 86/97 6.7/9.7 <1.1 150 1 or 3 6
MAGMP70RZ PP+GF/FPM 20 20 – 40/43 14.3/20.3 <1.1 150 1 or 3 6
MAGMP70RZM PP+GF/FPM – – 3/4 40/43 14.3/20.3 <1.1 150 1 or 3 6
MAGMP100R PP+GF/FPM 26 26 – 120/130 8.6/11.6 <1.3 370 1 or 3 8.5
MAGMP100RM PP+GF/FPM – – 1 120/130 8.6/11.6 <1.3 370 1 or 3 8.5
MAGMP100RX PP+GF/FPM 26 26 170 9 <1.3 370 1 or 3 8.5
MAGMP120R PP+GF/FPM 28 28 – 220 10.5 <1.3 550 1 or 3 11
MAGMP120RM PP+GF/FPM – – 2½ 220 10.5 <1.3 550 1 or 3 11
MAGMPH400CV5E PP+GF/FPM – – 1½ 220 12.5 <1.3 400 3 14
MAGMPH401CV5E PP+GF/FPM – – 1½ 260 18 <1.3 750 3 17
MAGMPH422CV5E PP+GF/FPM – – 2 320 21 <1.3 1500 1 or 3 24
MAGMPH423CV5E PP+GF/FPM – – 2 380 22 <1.3 2200 1 or 3 26

* PP = Polypropylene, GF = Glass fibre, FPM = Fluoroelastomer
